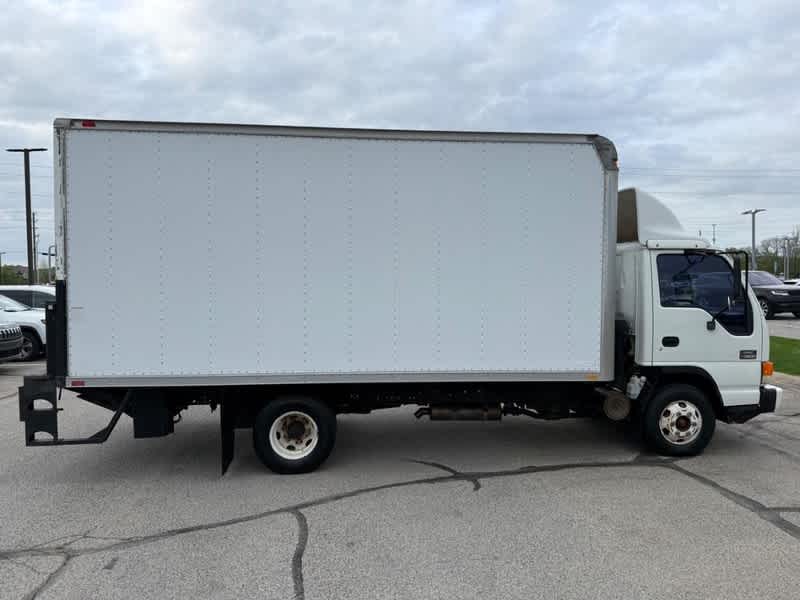

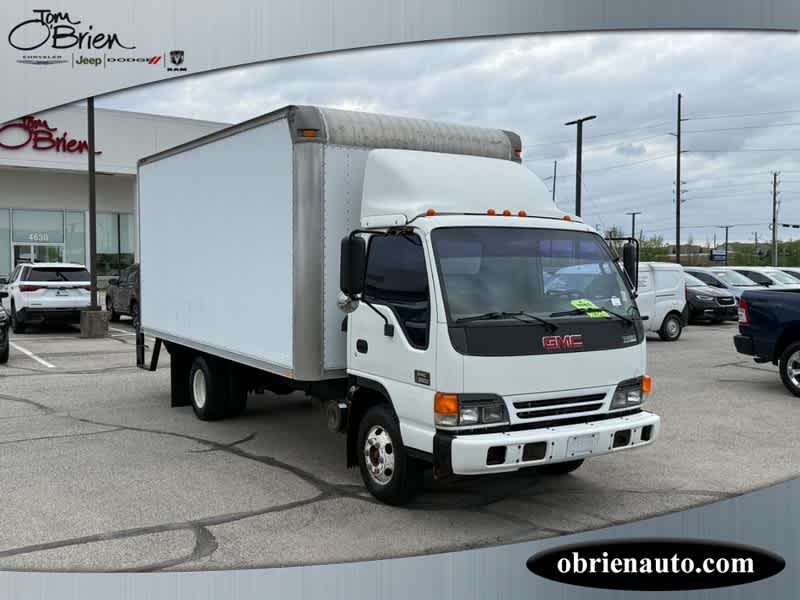

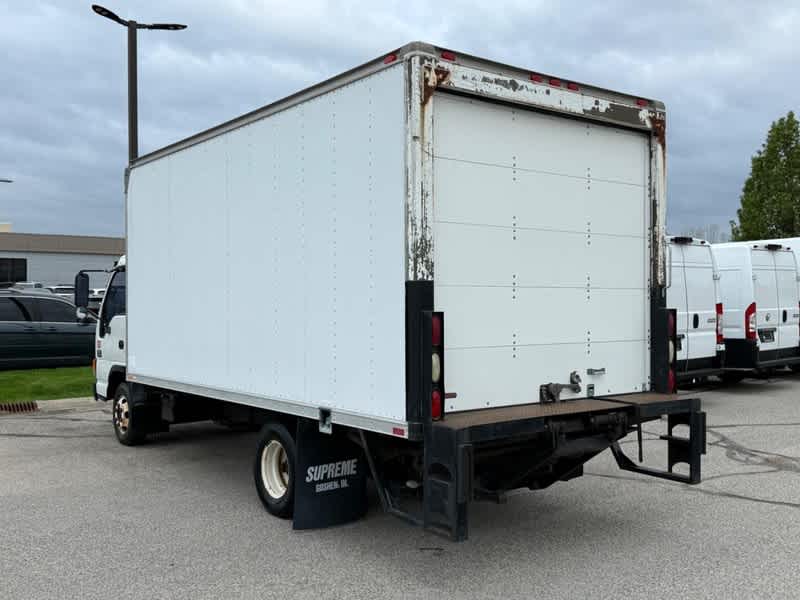

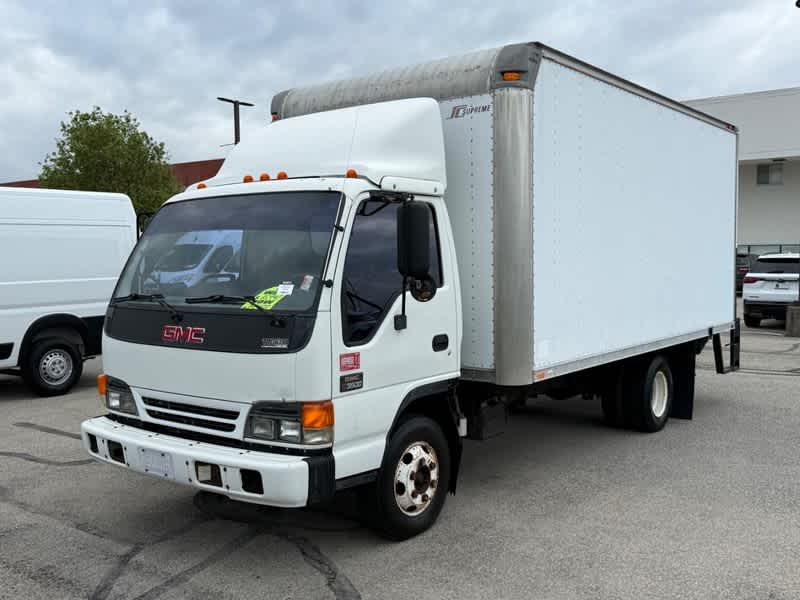

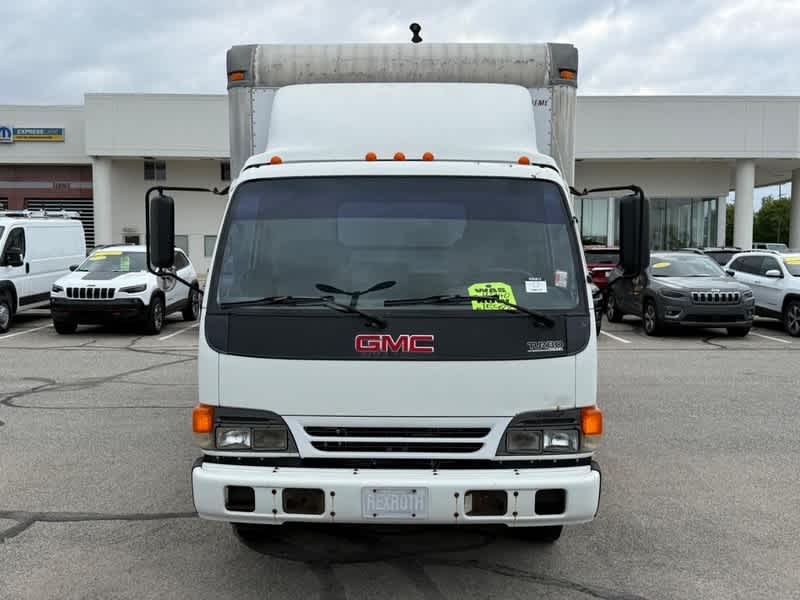

2005 GMC W3S042 W3500 DSL REG
2005 GMC W3S042 W3500 DSL REG
-
Call For Price SALE PRICE
- Sale Price: Call For Price
Visit our Store
- Tom O'Brien CJDR - Indianapolis
-
4630 E 96th St
Indianapolis, IN 46240
- Sales: 463-223-9543317-805-4400
- Service: 463-223-2852317-805-4400
- Parts: 317-689-0566317-805-4400
- Commercial: 463-223-8048317-805-4400
Vehicle Information
VIN:
J8DB4B16957007599
Stock #:
RS0812
Model Code:
W3500
-
Body Style Tilt Cab -
Exterior Color White
-

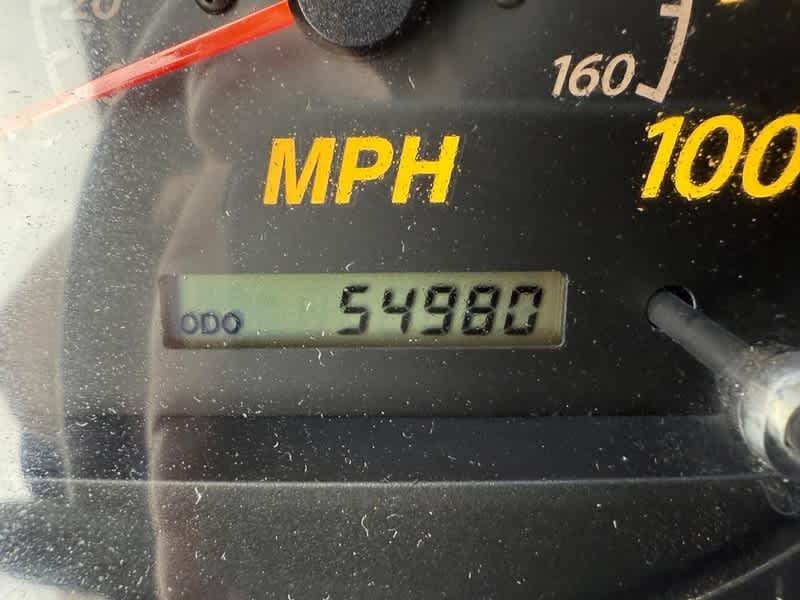

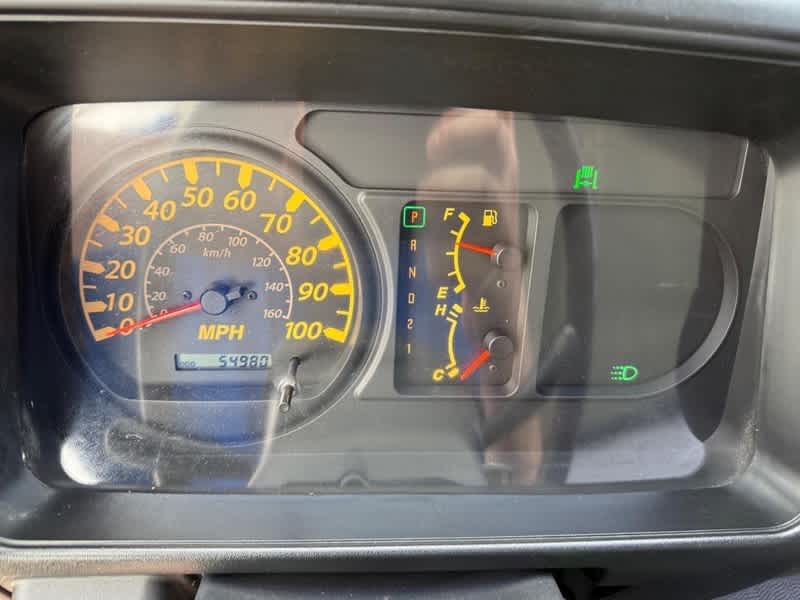

Mileage 54,959
-
Engine 4 Cyl -

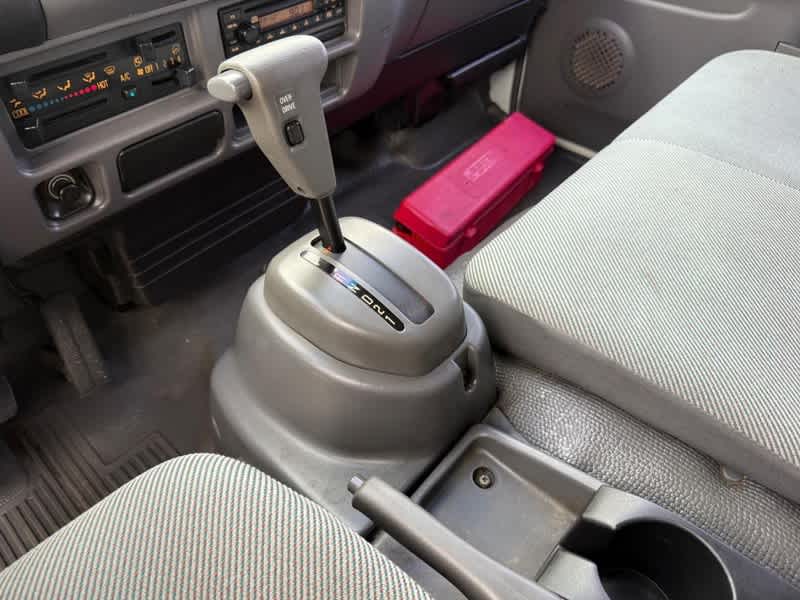

Transmission Automatic -
Fuel Type Diesel
Highlighted Features
Feature availability subject to final vehicle configuration. Please reference window sticker for more info.
- Turbo Charged Engine

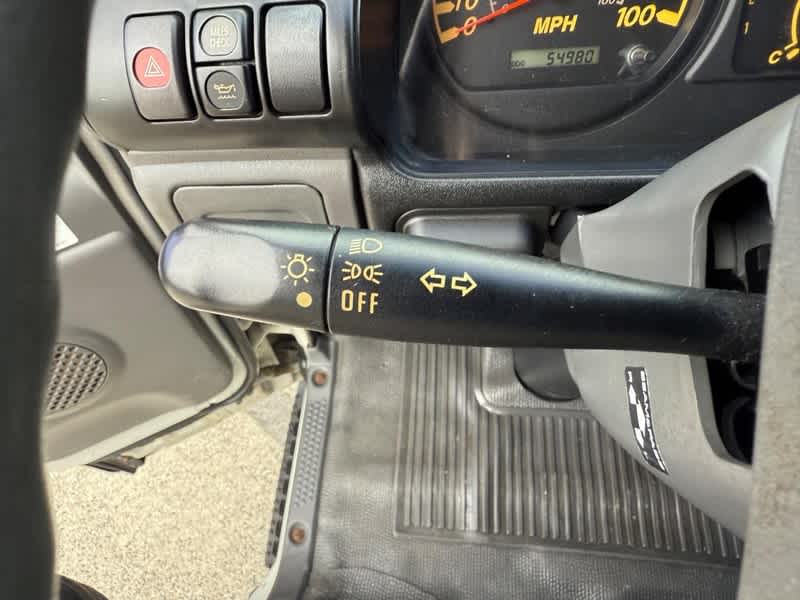

- Cruise Control
Eligible Benefits
All Features
- Truck Application
- GVWR, 12,000 lbs (5443 kg) capacity
- Air Cleaner, 10 inch diameter dry paper single element. Donaldson Brand - with vertical intake
- Exhaust Brake, Butterfly valve type
- Alternator, 110 AMP with integral regulator
- Battery, Dual Delco 12-V maintenance free 750 CCA each
- Exhaust System, Single horizontal exhaust system
- Rear wheel drive
- Front GAWR, 4700 lbs (2132 kg) capacity
- Front Axle, "I"-beam rated at 6830 lbs. (3098 kg) - Includes integral hydraulic power steering Ratio 18.8-20.9:1
- Front Suspension, Tapered Leaf, 8440 lbs. (3828 kg) capacity - Semi-elliptical tapered leaf springs. Includes shock absorbers and stabilizer bar.
- Front Shock Absorber
- Front Stabilizer Bar
- Front Wheels, 16" x 6", 6-hole disc, painted white
- Front Tire Size, 215/85R16E (10 ply) tubeless Radial - all season tread
- Rear GAWR, 7950 lbs (3606 kg) capacity
- Rear Axle, R040, single-speed, 11,020 lbs. (4999 kg) capacity - single speed with oil lubricated rear wheel bearings
- Rear Axle Ratio, 5.125:1
- Rear Suspension, Multi-Leaf, 9880 lbs. (4481 kg) capacity - Semi-elliptical main and auxiliary leaf springs. Includes shock absorbers.
- Rear Shock Absorber

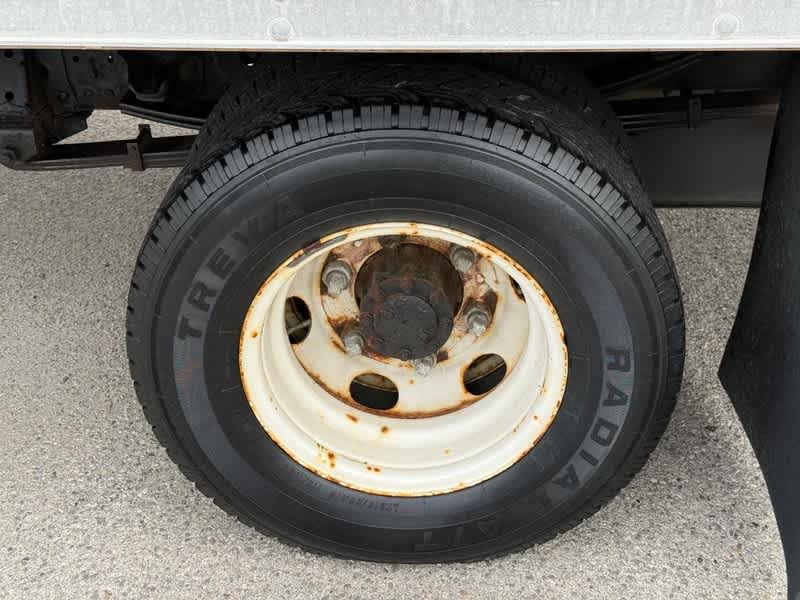

- Rear Wheels, 16" x 6", 6-hole disc, painted white
- Rear Tire Size, 215/85R16E (10 ply) tubeless Radial - all season tread
- Wheelbase, 109" (276.9 cm) - includes ladder type channel frame. Full C section straight frame 33.5 inches wide. Yield strength 44,000 psi section modulus 7.20 in3 RBM 316,800 lb/ft/in per rail.
- Frame, Ladder type channel - section straight frame rail 33.5 in. (85.1 cm) wide through the total length of frame. Yield strength 44,000 psi (303,369 kPa) section modulus of 7.20 and RBM 316,800.
- Fuel Tank, Single, 30-gallon (113.6L) rectangular fuel tank - Mounted between frame rail through the rail fuel fill. Tokyo-Roki heated fuel water separator mounted on the frame rail with dash mounted warning light.
- Cab Mounts, All steel low cab forward - BBC 68 in. (172.7 cm) in 45 deg. mechanical tilt with torsion assist.
- Windows, Tinted glass
- Two way roof ventilator
- Mirror, Dual cab mounted exterior mirrors
- Paint Scheme, Solid
- Color, Arctic White

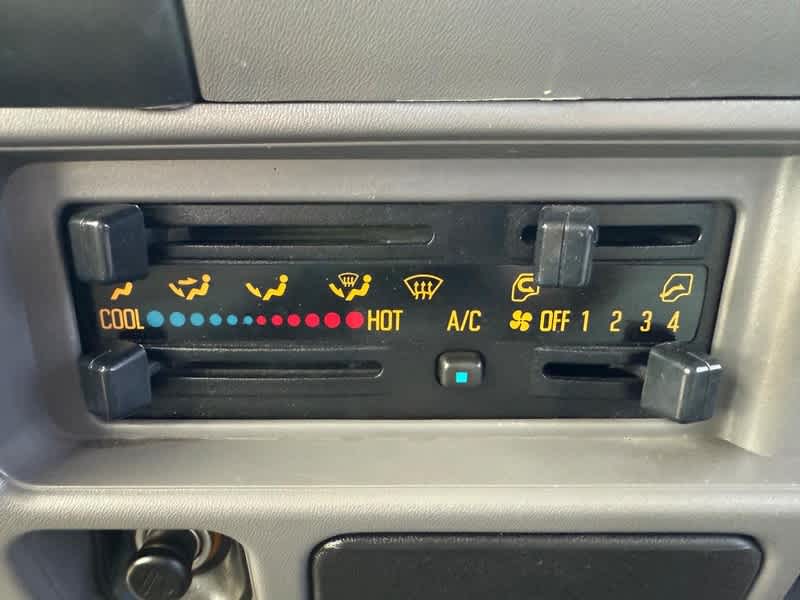

- Air Conditioning
- Steering, Integral power steering - with variable 18.8-20.9:1 gear ratio. Tilt and telescoping steering column.

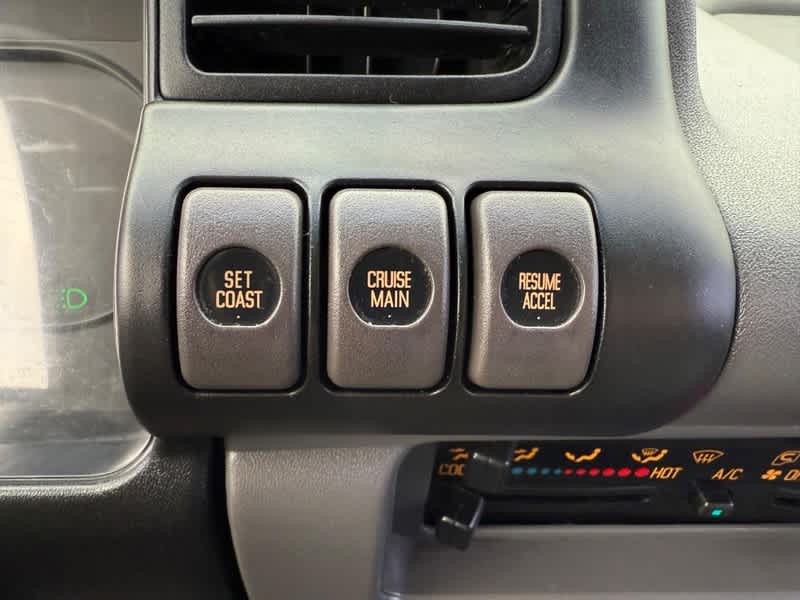

- Cruise Control

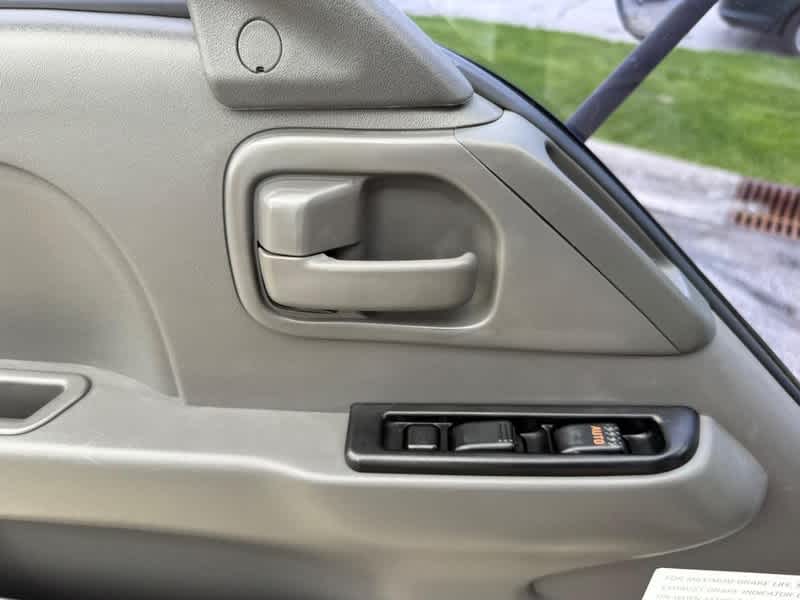

- Power windows and door locks

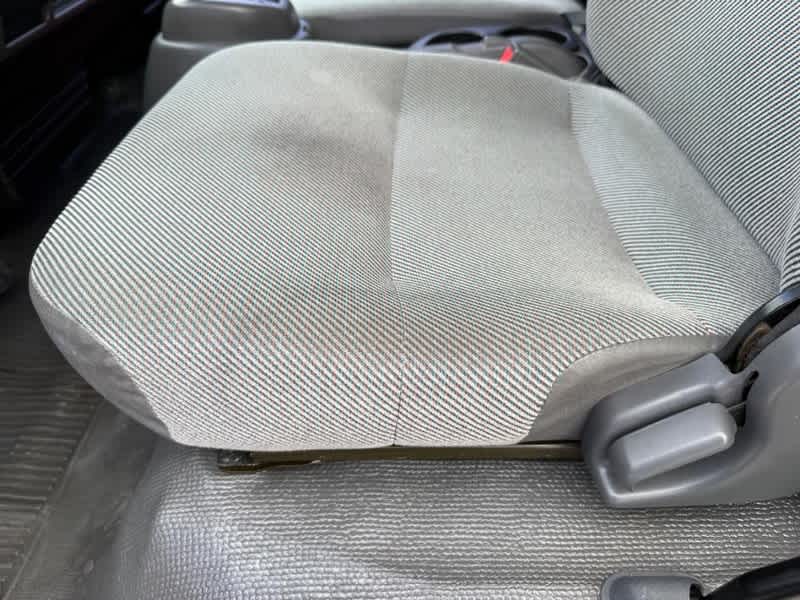

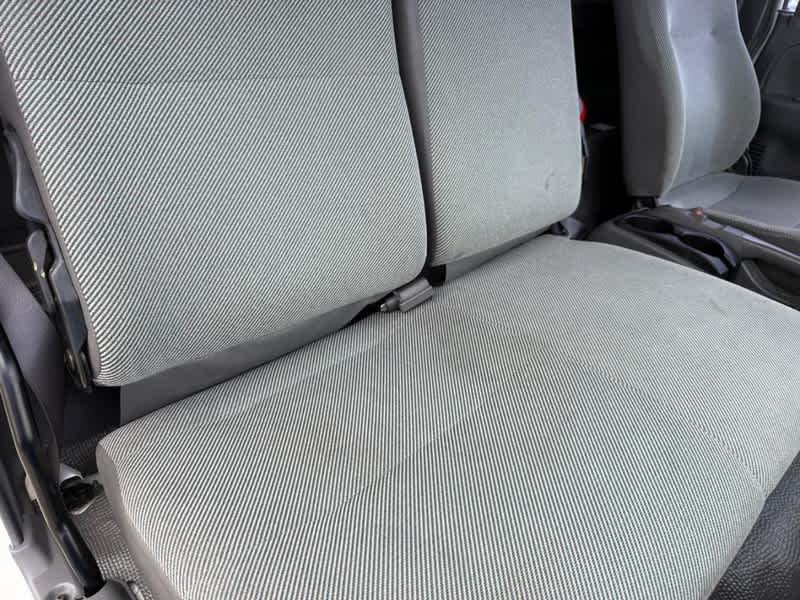

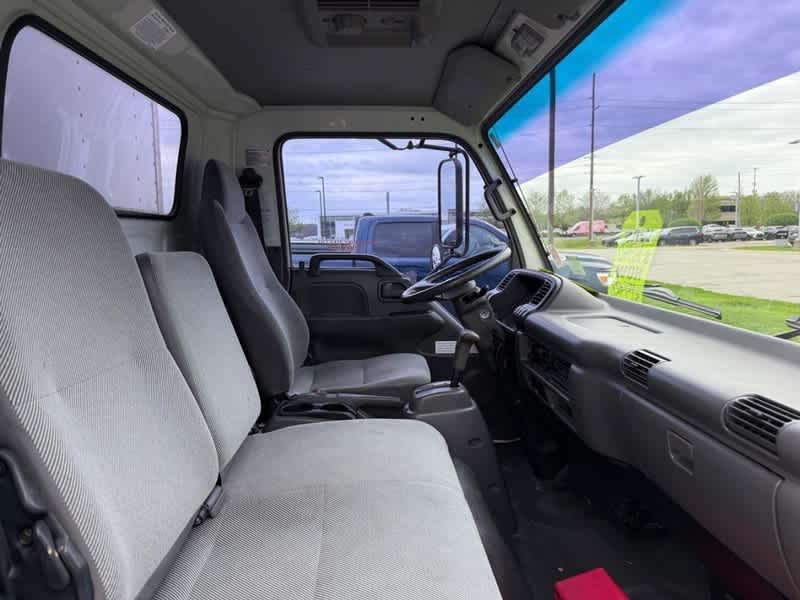

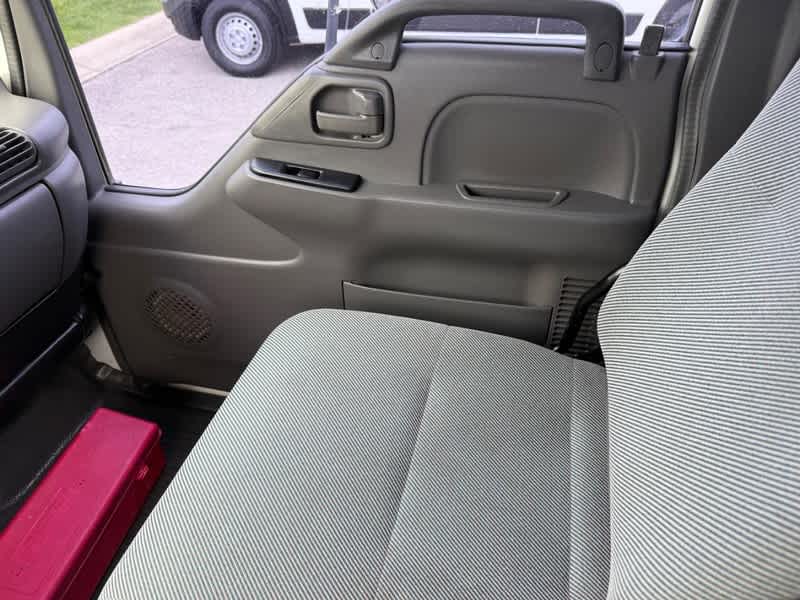

- Seats, Driver, Jersey knit cloth covered reclining highback - with two single occupant fold down seats
ISUZU DIESEL ENGINE, 4HK-TC, 317 CID (5.19L), 190 GROSS HP AT 2600 RPM: 387 LB-FT TORQUE AT 1500 RPM - 4 CYLINDER, 16 VALVE, FOUR CYCLE, OVERHEAD CAM, TURBOCHARGED, INTERCOOLED, WATER COOLED EGR VALVE, DIRECT INJECTION, ELECTRONICALLY CONTROLLED COMMON RAIL FUEL SYSTEM
- Engine cruise control and idle up function. Oil level check switch and light (STD)
- Front Frame Rating: - TBD -
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd): 750
- Maximum Alternator Capacity (amps): 110
- Maximum Alternator Watts: 1320
- Total Cooling System Capacity (qts): 18.4
- Gross Axle Wt Rating - Front (lbs): 4700
- Gross Axle Wt Rating - Rear (lbs): 7950
- Curb Weight - Front (lbs): 3484
- Curb Weight - Rear (lbs): 1907
- Gross Vehicle Weight Rating Cap (lbs): 12000
- Gross Combined Wt Rating (lbs): 18000
- Suspension Type - Front: Tapered Leaf
- Suspension Type - Rear: Multi-Leaf
- Spring Capacity - Front (lbs): 8440
- Spring Capacity - Rear (lbs): 9880
- Axle Type - Front: Reverse I-Beam
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front (lbs): 6830
- Axle Capacity - Rear (lbs): 11020
- Axle Ratio (:1) - Rear: 5.125
- Shock Absorber Diameter - Front (mm): 45
- Shock Absorber Diameter - Rear (mm): 45
- Stabilizer Bar Diameter - Front (in): 1.65
- Brake Type: Power
- Brake ABS System: Four Wheel
- Disc - Front (Yes or ): Yes
- Front Brake Rotor Diam x Thickness (in): 11.5 x 0.51
- Drum - Rear (Yes or ): Yes
- Rear Drum Diam x Width (in): 12.6 x 2.95
- Front Tire Order Code: I53/I69
- Rear Tire Order Code: I53/I34
- Front Tire Size: 215/85R16E
- Rear Tire Size: 215/85R16E
- Front Tire Capacity (lbs): 2430
- Rear Tire Capacity (lbs): 2210
- Revolutions/Mile @ 45 mph - Front: 683
- Revolutions/Mile @ 45 mph - Rear: 682
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Front Wheel Size (in): 16 x 6.0
- Rear Wheel Size (in): 16 x 6.0
- Front Wheel Offset (mm): 127.0
- Rear Wheel Offset (mm): 127.0
- # of Bolt Holes - Front: 6
- # of Bolt Holes - Rear: 6
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Front Bolt Pattern: 6 Hole JIS 8.75"
- Rear Bolt Pattern: 6 Hole JIS 8.75"
- Steering Type: Power
- Steering Ratio (:1), On Center: 18.8 - 20.9
- Steering Ratio (:1), At Lock: 18.8 - 20.9
- Turning Diameter - Curb to Curb (ft): 33.5
- Turning Diameter - Wall to Wall (ft): 38.1
- Frame Type: Ladder
- Sect Modulus Rails Only (in³): 7.20
- Frame RBM (N/A): 316800
- Frame Strength (lbs): 44000
- Frame Thickness (in): 8.5 X 2.76 X .24
- Fuel Tank Capacity, Approx (gal): 30
- Fuel Tank Location: In frame rail
- Wheelbase (in): 109.0
- Length, Overall w/o rear bumper (in): 199.5
- Width, Max w/o mirrors (in): 78.5
- Height, Overall (in): 88.2
- Overhang, Front (in): 47.4
- Overhang, Rear w/o bumper (in): 43.1
- Front Bumper to Back of Cab (in): 68.0
- Cab to Axle (in): 88.4
- Cab to End of Frame (in): 131.5
- Ground to Top of Frame (in): 32.0
- Frame Width, Rear (in): 33.5
- Ground Clearance, Front (in): 8.6
- Ground Clearance, Rear (in): 8.6
- Body Length Default Value (ft): 12
- Passenger Capacity: 3
- Front Head Room (in): 42.5
- Front Leg Room (in): 39.2
- Front Shoulder Room (in): 70.7
- Front Hip Room (in): 66.6
- Vehicle Name: GMC W3S042 W3500 DSL REG
- Body Style: Tilt Chassis Cab
- Driver Ratio: 1
- Torque @ Clutch Engage (ft-lbs): 265
- Torque Converter: 1.745
- Static Loaded Radius (in): 15.1
- Max Speed For Gradeability: 72
